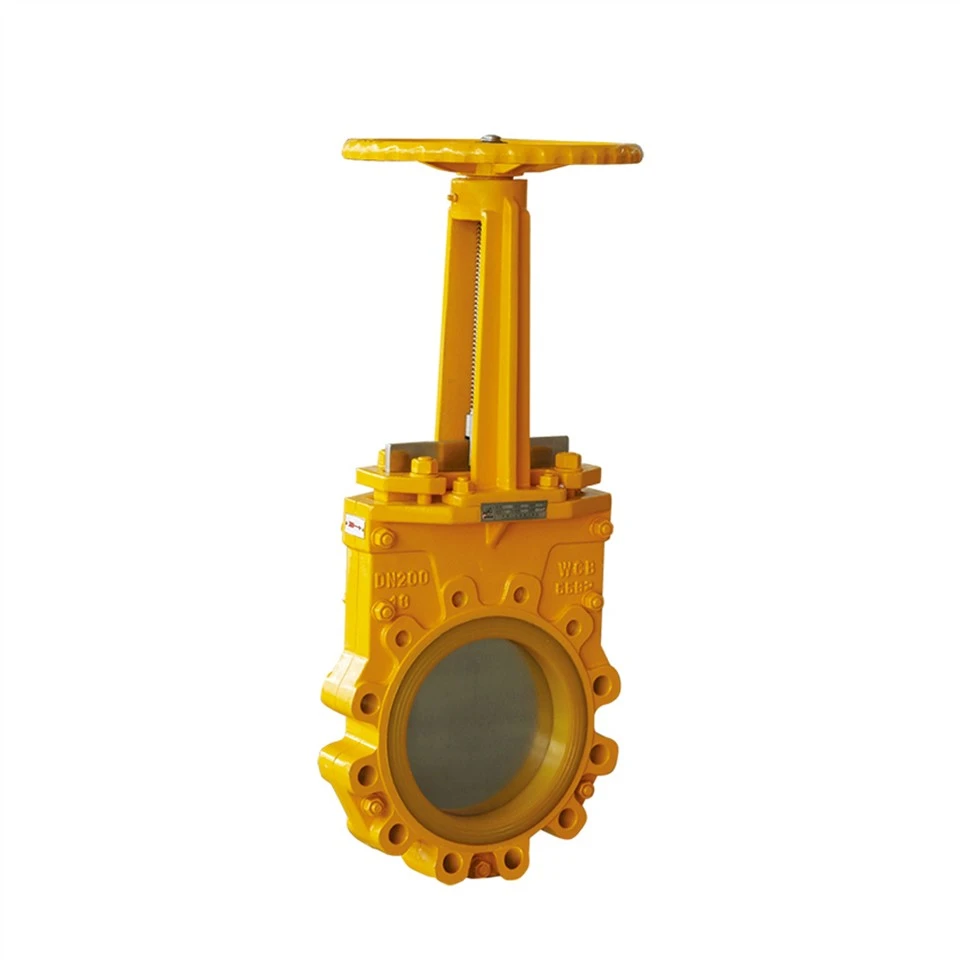

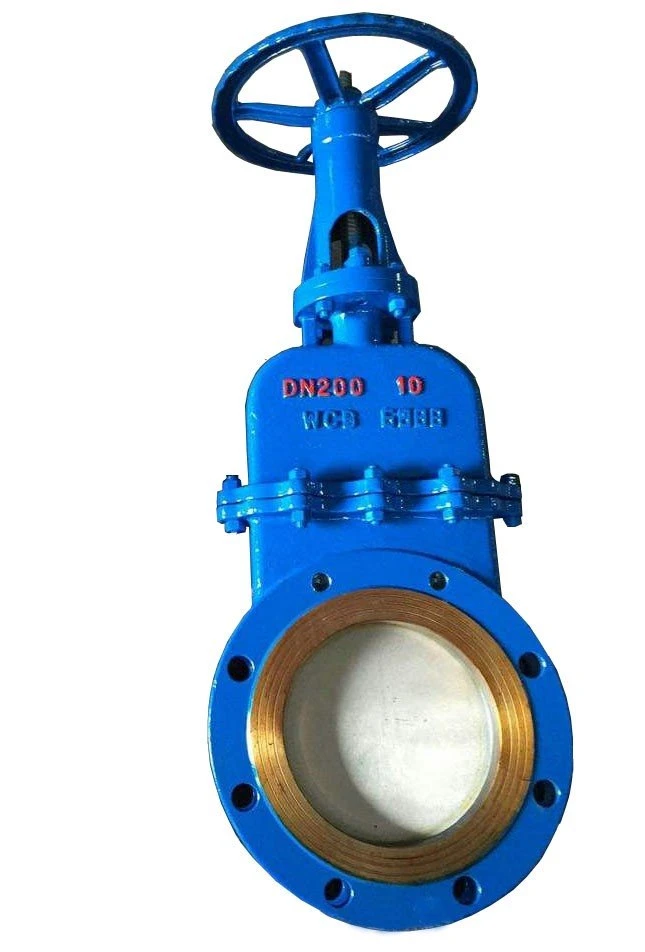

Taw qhia ntawm phau ntawv ib-clip hom riam rooj vag valve:
Phau ntawv ib leeg-clip hom riam rooj vag valve PZ43 muaj cov qauv tsim, me me chaw nyob, lub teeb yuag, yooj yim rau nruab, zoo meej hnav tsis kam thiab thaiv kev ntsuas, kev saib xyuas yooj yim, kev pab lub neej ntev.
Daim ntawv thov:
Haum rau cov khoom noj thiab dej haus, ntawv ua, kev lag luam pulp, cov dej phwj tuaj, kev kho dej hauv nroog, cov tshuaj cog qoob loo, cov khoom thauj khoom loj, kev lag luam ya tshauv kho.
Nqe lus piav qhia:
1. Valve tswj tsis tau tsuas yog hauv zos thiab cov chaw taws teeb tswj, tab sis kuj raws li tus neeg siv yuav tsum tau ua kom tiav cov chaw taws teeb pom kev thiab cov chaw taws teeb tswj chaw taws teeb.
2. Lub teeb nyob rau hauv qhov hnyav: lub cev yog ua los ntawm carbon steel, uas yog 20 feem pua -30 feem pua sib dua li cov tsoos rooj vag valve. Nws yog ib qho yooj yim rau nruab thiab tswj.
3. Kev siv lub valve tuaj yeem txhim kho lub kaw kev ua haujlwm ntawm lub raj xa dej, txo qis, kev ua haujlwm ntau lawm, tiv thaiv ib puag ncig yuav ua lub luag haujlwm zoo hauv kev txhawb nqa.
4. Lub sealing nto yog ua los ntawm kev hnav-resistant thiab corrosion-resistant ceramic cov ntaub ntawv, nrog mosaic technology, siab corrosion kuj thiab zoo hnav tsis kam, thiaj li hais tias lub valve muaj ib tug ntev kev pab cuam lub neej thiab cov nqi kev ua tau zoo yog 10 lub sij hawm siab tshaj qhov ntawd. ntawm qhov qub qub.
Specification:
Valve Loj: | 2"-48" |
Qib Siab: | 125 LB-150LB(PN6-PN16) |
Khoom siv: | GGG40, WCB, CF8, CF8M, CF3, CF3M, F55, F53,2205 |
Tsim thiab tsim cov qauv: | JB/T8691-2013 |
Ntsej muag ntsej muag Standards: | GB/T15188 2-94 daim duab6-7 |
Flange Dimension Standards: | GB/T9113 1-2010 |
Siab Test Standards: | GB/T 13927-2008 |
Test Standard: | DN{0}}DN100 16bar DN{0}}DN200 10bar DN{0}}DN400 7bar DN{0}}DN550 5bar DN{0}}DN700 3bar DN{0}}DN900 2bar DN{0}}DN1400 1bar |
Quality/Product Certifications: | CE, ACS, WRAS, TS... |

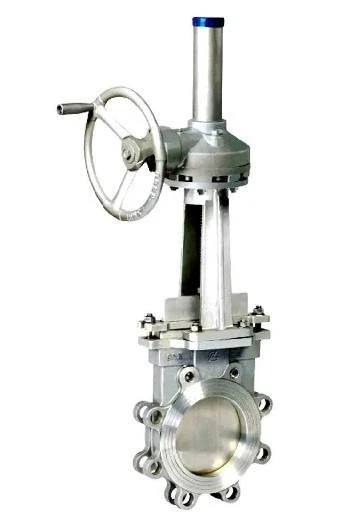

Valve tus neeg teb xov tooj xaiv | Tes log tsav, bevel iav tsav, hluav taws xob, pneumatic, hydraulic. |
Txheej txheem kev sib txuas hom | Wafer Hom, Flange Hom. |
Siv tau nruab nrab | Pulp, dej phwj, thee pulp, tshauv, slag dej sib tov. |
