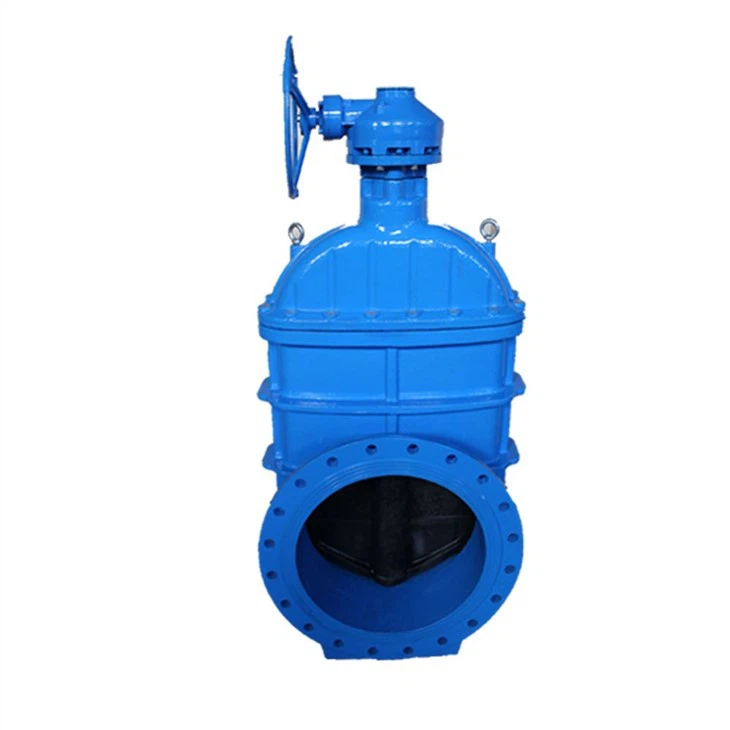

Taw qhia ntawm Bevel iav flange rooj vag valve Z541H:
Bevel iav flange rooj vag valve Z541 feem ntau yog siv los txuas lossis txiav tawm cov kav dej nruab nrab, tsis haum rau kev tswj cov dej ntws ntawm nruab nrab, thiab muaj ntau yam siab, kub thiab txoj kab uas hla, tshwj xeeb tshaj yog haum rau nruab nrab, txoj kab uas hla loj.
Daim ntawv thov:
Haum rau roj av, tshuaj, thermal fais fab chaw nres tsheb thiab lwm yam kev ua haujlwm ntawm cov kav dej, txiav tawm lossis txuas nruab nrab.
Nqe lus piav qhia:
1. Nws muaj cov qauv compact, tsim nyog tsim, zoo rigidity valve, du channel, me me ntws kuj coefficient.
2. Lub sealing nto yog ua los ntawm stainless hlau thiab tawv alloy, nrog rau lub neej ntev kev pab cuam.
3. Nws hloov tau yooj yim graphite packing, txhim khu kev qha sealing, lub teeb thiab hloov tau yooj yim.
4. Hom qauv muaj xws li elastic wedge hom ib lub rooj vag, rigid wedge hom ib lub rooj vag thiab ob lub rooj vag.
Specification:
Valve Loj: | 1/2"-64" |
Qib Siab: | 150LB-2500LB(10bar-250bar) |
Khoom siv: | Carbon steel A216 WCB, stainless hlau A351 CF8 / CF8M, tooj liab alloy B148-95400/95800 |
Tsim thiab tsim cov qauv: | API600,ANSI B16.34.E101,BS1873,GB/T 12234-2007 |
Ntsej muag ntsej muag Standards: | ANSI B16.10 E101,GB/T 12221-2005 |
Flange Dimension Standards: | ANSI B16.50, ANSI B16.25, JB/T79 |
Siab Test Standards: | API 598, JB/T9092, GB/T13927 |
Test Standard: | Foob * 1.1 zaug, plhaub * 1.5 zaug |
Quality/Product Certifications: | CE, ACS, WRAS, TS... |
Valve tus neeg teb xov tooj xaiv | |
Txheej txheem kev sib txuas hom | Hom Flange, Vuam hom. |
Siv tau nruab nrab | Cov dej ntshiab, dej phwj tuaj, dej hiav txwv, khoom noj, tshuaj, txhua yam roj, thiab lwm yam. |
