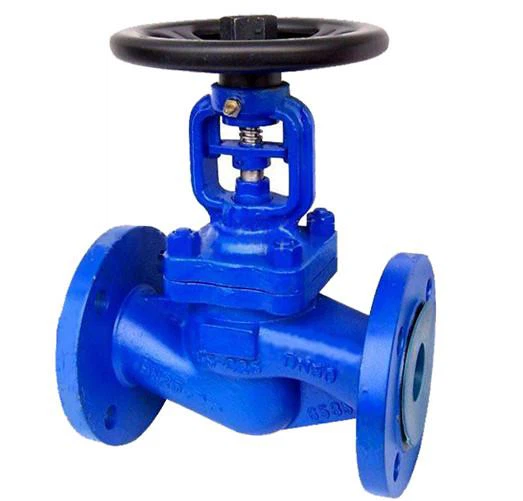

Taw qhia ntawm Bellows Globe Valve:
Bellows Globe valve yog hom kev tsim kho hauv tsev. Qhov qis kawg ntawm stainless hlau bellows yog welded rau qia los tiv thaiv cov txheej txheem kua los ntawm eroding lub qia. Lwm qhov kawg yog muab tso rau nruab nrab ntawm lub cev lub cev thiab lub valve npog, uas ua rau lub foob zoo li qub. Ob chav foob tsim tiv thaiv qia packing los ntawm xau yog tias hauv qab tsis ua haujlwm. Bellows yog welded rau qia kom tswj kev ua haujlwm ruaj khov thiab tiv thaiv qia vibration vim ntsaws kev co.
Daim ntawv thov:
Nws yog tsim rau petrochemical, tshuaj fiber ntau textile, yas, ntawv ua, hluav taws xob fais fab, hlau thiab hlau, tsheb, khoom noj khoom haus thiab dej haus, electronics, tshuaj lom neeg, luam ntawv thiab dyeing roj hmab thiab lwm yam lag luam.
Nqe lus piav qhia:
1, Nws muaj cov qauv khoom tsim nyog, txhim khu kev qha sealing, zoo nkauj tsos.
2, Nws muaj lub sealing nto ntawm Co-based carbide surfacing, hnav tsis kam, corrosion kuj, kev sib txhuam tsis kam, kev pab lub neej ntev.
3, Tom qab valve qia quenching thiab tempering thiab nto nitriding kev kho mob, Nws muaj zoo corrosion kuj thiab kev sib txhuam tsis kam.
4, Txoj cai-angled DIN bellows ntiaj teb valve muaj ob lub foob thiab kev ua tau zoo dua.
5, Nws muaj lub valve qia lifting txoj hauj lwm qhia uas yog intuitive ntau.
Specification:
Valve Loj: | 1/2"-16" |
Qib Siab: | PN 16-64 (150LB-600LB) |
Khoom siv: | Carbon steel A216 WCB, stainless hlau A351 CF8, CF3, CF8M, CF3M. |
Tsim thiab tsim cov qauv: | DIN3356 |
Ntsej muag ntsej muag Standards: | DIN3203 |
Flange Dimension Standards: | DIN 2543-2545 |
Siab Test Standards: | DIN3230 |
Test Standard: | Foob * 1.1 zaug, plhaub * 1.5 zaug. |
Quality/Product Certifications: | CE, ACS, WRAS, TS... |
Valve tus neeg teb xov tooj xaiv | Tes log tsav, hluav taws xob, pneumatic, hydraulic, thiab lwm yam. |
Txheej txheem kev sib txuas hom | Hom Flange, Vuam hom |
Siv tau nruab nrab | Chav, cua sov conduction roj, compressed cua thiab lwm yam uas tsis yog-corrosive kua media. |
