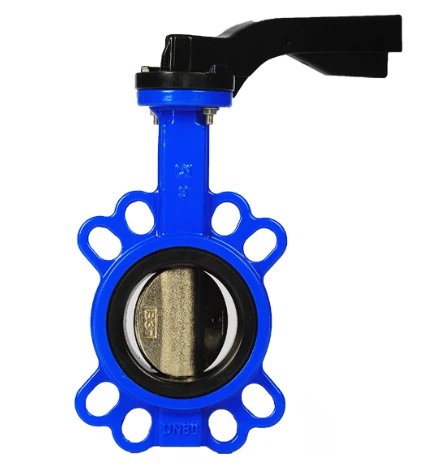

Product Description
Lub discNpauj Npaim Valveyog ntsia rau hauv txoj kab uas hla ntawm cov yeeb nkab. Hauv
npauj npaim valve lub cev cylindrical channel, disc zoo li npauj npaim phaj nyob ib ncig ntawm lub axis ntawm kev sib hloov, tig lub kaum sab xis ntawm 0 degree -90 degree, tuaj yeem ua lub luag haujlwm ntawm kev khiav dej num, thaum npauj npaim phaj tig mus rau 90 degree, valve kom ncav cuag qhov siab tshaj plaws qhib. Wafer npauj npaim valve yog nrog cov qauv yooj yim, me me, lub teeb yuag, tsuas yog los ntawm ob peb qhov chaw. Thiab tsuas yog yuav tsum tau tig 90 degree tuaj yeem qhib thiab kaw sai, kev ua haujlwm yooj yim, thiab lub valve muaj cov yam ntxwv tswj dej zoo.
npauj npaim valve lub cev cylindrical channel, disc zoo li npauj npaim phaj nyob ib ncig ntawm lub axis ntawm kev sib hloov, tig lub kaum sab xis ntawm 0 degree -90 degree, tuaj yeem ua lub luag haujlwm ntawm kev khiav dej num, thaum npauj npaim phaj tig mus rau 90 degree, valve kom ncav cuag qhov siab tshaj plaws qhib. Wafer npauj npaim valve yog nrog cov qauv yooj yim, me me, lub teeb yuag, tsuas yog los ntawm ob peb qhov chaw. Thiab tsuas yog yuav tsum tau tig 90 degree tuaj yeem qhib thiab kaw sai, kev ua haujlwm yooj yim, thiab lub valve muaj cov yam ntxwv tswj dej zoo.
Technical Specifications:
Ntsej muag ntsej muag: API609 / EN593 / EN558
Flange Drilling: DIN2501 / ANSIB16.10 / EN1092
Ua haujlwm siab: PN10 / PN16
Sab saum toj flange kev twb kev txuas: ISO5211
Ntsej muag ntsej muag: API609 / EN593 / EN558
Flange Drilling: DIN2501 / ANSIB16.10 / EN1092
Ua haujlwm siab: PN10 / PN16
Sab saum toj flange kev twb kev txuas: ISO5211
Main Parts thiab Material:
|
Yam khoom
|
Lub Npe
|
Khoom siv
|
Yam khoom
|
Lub Npe
|
Khoom siv
|
|
1
|
Lub cev
|
GGG 50
|
3
|
Ncej
|
Stainless hlau
|
|
2
|
Disc
|
Stainless hlau
|
4
|
O-ring
|
EPDM
|
Rau lwm qhov ntau thiab tsawg tsis tau hais los saum toj no, thov hu rau peb. Peb muaj cai hloov cov ntaub ntawv yam tsis muaj ntawv ceeb toom ntxiv.
Lub disc ntawm Wafer Npauj Npaim Valve yog ntsia rau hauv txoj kab uas hla ntawm cov yeeb nkab.
Nyob rau hauv npauj npaim valve lub cev cylindrical channel, disc zoo li npauj npaim phaj nyob ib ncig ntawm lub axis ntawm kev sib hloov, tig lub kaum sab xis ntawm 0 degree -90 degree, tuaj yeem ua lub luag haujlwm ntawm kev khiav dej num, thaum npauj npaim phaj tig mus rau 90 degree , lub valve kom ncav cuag qhov siab tshaj plaws qhib.
Wafer npauj npaim valve yog nrog cov qauv yooj yim, me me, lub teeb yuag, tsuas yog los ntawm ob peb qhov chaw. Thiab tsuas yog yuav tsum tau tig 90 degree tuaj yeem qhib thiab kaw sai, kev ua haujlwm yooj yim, thiab lub valve muaj cov yam ntxwv tswj dej zoo.
