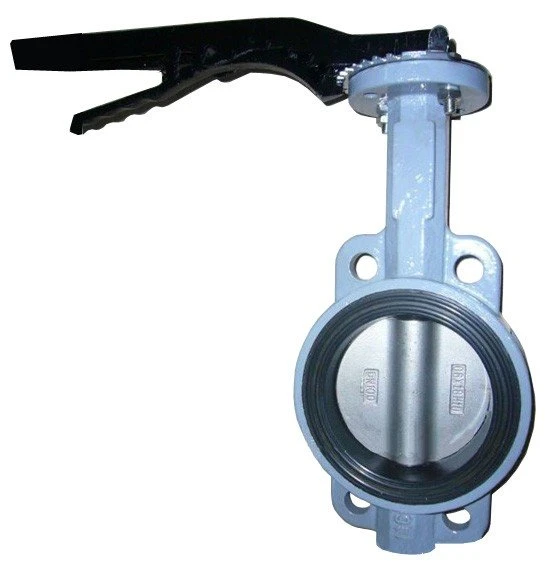

Taw qhia ntawm Handle Npauj Npaim Valve:
Kov npauj npaim valve yog ib hom mos foob npauj npaim valve, yog ib hom kev sib kis ntawm lub valve, feem ntau yog siv rau txoj kab uas hla 6 "hauv qab, qhov siab tshaj plaws kev khiav hauj lwm txoj kab uas hla yog 12".
Daim ntawv thov:
Kov npauj npaim valve yog tsim rau dej tshiab, dej phwj tuaj, dej hiav txwv, huab cua, chav, khoom noj, tshuaj, txhua yam roj, acid, alkali, thiab lwm yam.
Nqe lus piav qhia:
Khoom nta:
1. Me me thiab lub teeb, yooj yim disassembly thiab txij nkawm, thiab tuaj yeem ntsia tau rau txhua txoj haujlwm.
2. Yooj yim, compact qauv, ceev 90 degree on-off lag luam.
3. Tsawg kev khiav hauj lwm torque, siv zog thiab hnav.
4. Ua tiav cov foob, cov pa ntsuas pa tawm yog xoom.
5. Ntau yam khoom siv, cov khoom siv hlau, carbon hlau, stainless hlau, lub rooj zaum: EPDM, NBR, PTFE, fluorine roj hmab, muaj feem xyuam rau cov nruab nrab sib txawv.
6. Flow nkhaus tending mus ncaj-kab. Kev tswj kev ua tau zoo heev.
7. Lub neej ua haujlwm ntev. Standing qhov kev xeem ntawm 10, 000 zaug qhib thiab kaw ua haujlwm.
8.Txhua lub raj xa dej, siv lub rooj vag li qub, lub ntiaj teb li qub, cocks, roj hmab hose li qub thiab diaphragm li qub, tuaj yeem hloov tau los ntawm lub valve no. Thaum txiav txim, lub valve tuaj yeem muab nrog cov kav dej sib txuas (thov qhia hauv daim ntawv cog lus).
Specification:
Valve Loj: | 1"-12" |
Qib Siab: | 125 LB-150LB(PN10-25) |
Khoom siv: | ASTM A536, carbon steel A216 WCB, stainless hlau A351 CF8 / CF8M, tooj liab alloy B148-95400/95800 |
Tsim thiab tsim cov qauv: | API609, BS5155, EN593 |
Ntsej muag ntsej muag Standards: | API609, EN558-1, DIN3202K1, ISO5752 |
Flange Dimension Standards: | ASME B16. |
Siab Test Standards: | API598, WN12266-1, DIN3230 Part3 |
Test Standard | Foob * 1.1 zaug, plhaub * 1.5 zaug |
Quality/Product Certifications: | CE, ACS, WRAS, TS... |
Valve tus neeg teb xov tooj xaiv | Handle, Teeb liab kov tsav |
Txheej txheem kev sib txuas hom | Wafer Hom, Flange Hom |
Siv tau nruab nrab | Cov dej ntshiab, dej phwj tuaj, dej hiav txwv, huab cua, chav, khoom noj, tshuaj, roj, acids, alkalis, thiab lwm yam |
