Taw qhia

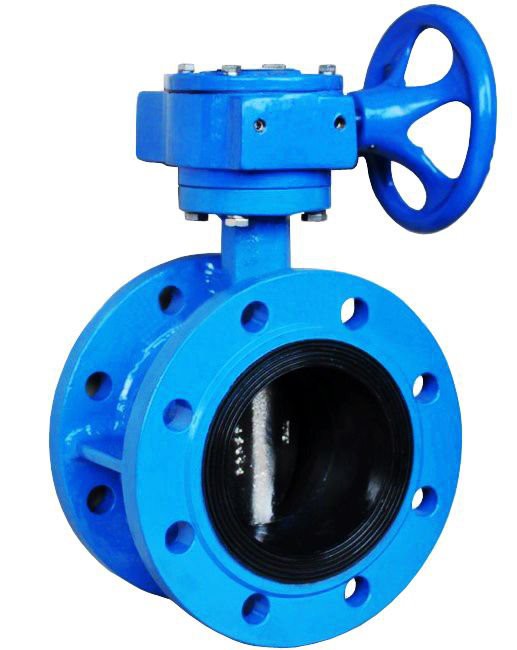

Flanged npauj npaim valve yog muab faib ua mos foob flanged npauj npaim valve thiab tawv foob flanged npauj npaim valve; Mos foob flanged npauj npaim valve feem ntau siv nyob rau hauv peb yam: flange kev twb kev txuas center phaj npauj npaim valve mos foob ob eccentric flange npauj npaim valve thiab U hom flange npauj npaim valve flange kev twb kev txuas center phaj npauj npaim valve ob- txoj kev sealing kev ua tau zoo heev, torque tus nqi yog me me, qhov kev ua tau zoo yog superior.
Daim ntawv thov
Flanged npauj npaim valve yog dav siv nyob rau hauv metallurgy, petrochemical, tshuaj refining, dej thiab kua engineering thiab lwm yam lag luam.
Kev piav qhia
Khoom nta:
1. Flange npauj npaim valve flange kev twb kev txuas installation yog yooj yim, ntsug los yog kab rov tav installation yuav ua tau
2. Valve sealing khoom muaj ntau haiv neeg, muaj rau cov neeg siv xaiv
3. Valve tuaj yeem siv rau cov yeeb nkab kawg li qhov cua valve, txhim khu kev qha
4. Lub rooj zaum valve sealing nplhaib thiab lub valve lub cev yog cov organically ua ke, kom lub valve muaj lub neej ntev kev pab cuam.
Specification
Valve Loj: | 1.2"-80" |
Qib Siab: | PN6-PN25, 125LB 150LB |
Khoom siv: | ASTM A536, carbon steel A216 WCB, stainless hlau A351 CF8 / CF8M, tooj liab alloy B148-95400 / 95800 |
Tsim thiab tsim cov qauv: | BS5155, API609, EN593 |
Ntsej muag ntsej muag Standards: | EN558-1, ISO 5752 |
Flange Dimension Standards: | DIN2501 PN10, PN16, BS4504 PN10, PN16, ASME B16.1 125LB 150LB, JISB2220 10K |
Siab Test Standards: | DIN3230, API 598, EN593 |
Quality/Product Certifications: | CE, ACS, WRAS, TS... |
Valve tus neeg teb xov tooj xaiv | Kov, cab log thiab cab cab, |
Txheej txheem kev sib txuas hom | Hom Flange |
Siv tau nruab nrab | Cov dej ntshiab, dej phwj tuaj, dej hiav txwv, huab cua, chav, khoom noj, tshuaj, roj, acids, alkalis, thiab lwm yam |
